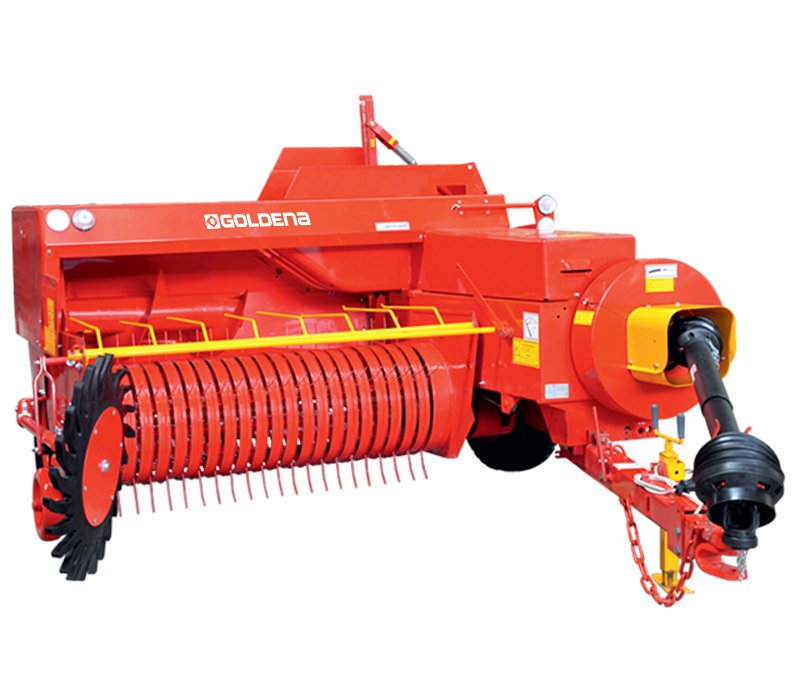

BALER MACHINE

BINDER SYSTEM: 3 rope binder unit is produced with special and hardened material. It can run continuous and also make uninterrupted bale.

SUPERIOR H-CUT SYSTEM: H-cut and pickup widths are equalized and increased to 155 cm. Collected crop is chopped equal and continuous due to this feature..

WORK CABINET: Rope storage with 6 pieces rope capacity provide long time and uninterrupted working opportunities.

DIGITAL BALE COUNTER: Digital bale counter displays the daily and total bale numbers which is made.

EQUIPMENT CABINET: It provides operator to keep his equipment in it and it can be used as rope storage as well.

TECHNICAL SPECIFICATIONS
MODEL	GBL-155
Bale Size (cm)	36x46
Bale Length (m)	0,35-1,3
Bale Weight (kg)	12-26
Working Width (cm)	155
H-Cut Unit	Available
H-Cut Drum Rpm	1950
Binder Type	3 Ropes Knotter
Necessary Power	65
PTO (rpm)	540
Right Side Tire Size	10/75-15.3
Left Side Tire Size	10/80-12
Length (In Transport Position) (m)	5.44
Length (In Working Position) (m)	6.44
Width (m)	2.48
Height (mt)	1.87
Weight (kg)	2460
Work Efficiency (Bale/Day)	1200-2000
